Dolphin 70e Black Models Not Equipped a Battery Door Lock

If your Dolphin 70e Black model does not have a battery retention strap, see page 3-7.

For a description of each callout, see Feature Descriptions: Back, Top, and Left Panels on page 3-9.

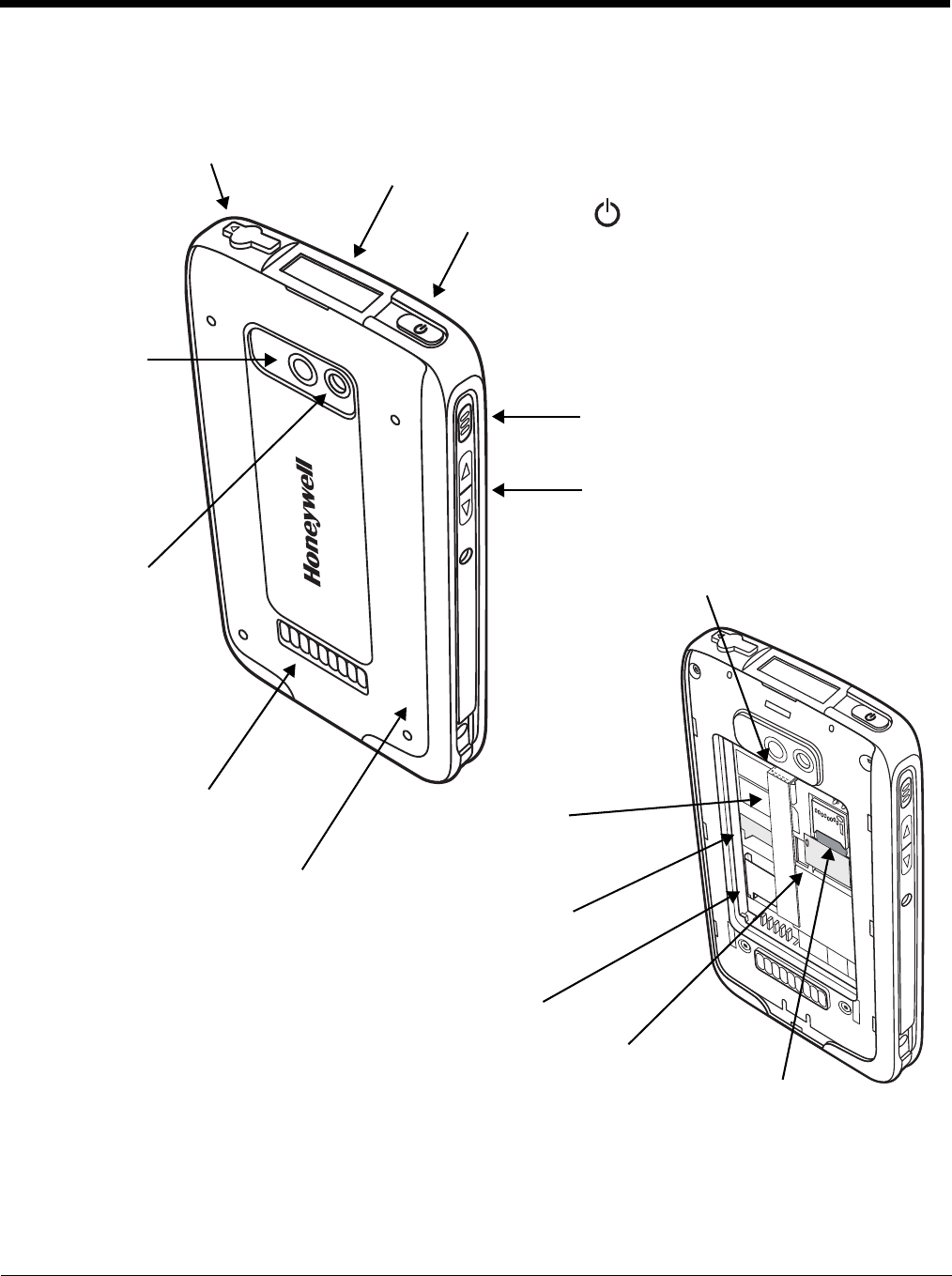

Image Engine Window (LED Aimer Aperture)

Camera Flash

Color Camera

SIM Card Socket*

Power Button

Left Scan/Image Button

I/O Connector

(see page 3-11)

Audio Jack

Volume Control Button

Battery Door

(Standard Model Shown)

Memory Card Socket with microSD Card (pre-installed)

SIM Card Retention Flap*

Memory Retention Flap

* WWAN equipped models only

Battery Latch

(located under battery retention Strap)

Battery Retention Strap

(battery and battery door not shown)
